1710 Teflon-Wire (PFA) Supplier in China
1.The standard of the product：Ulsbj758
2.Purpose：The wire is for home Electric appliances，Lighting equipments mechanical electrical machines which requires high temperature encironment.：
3.Construction sketch map：

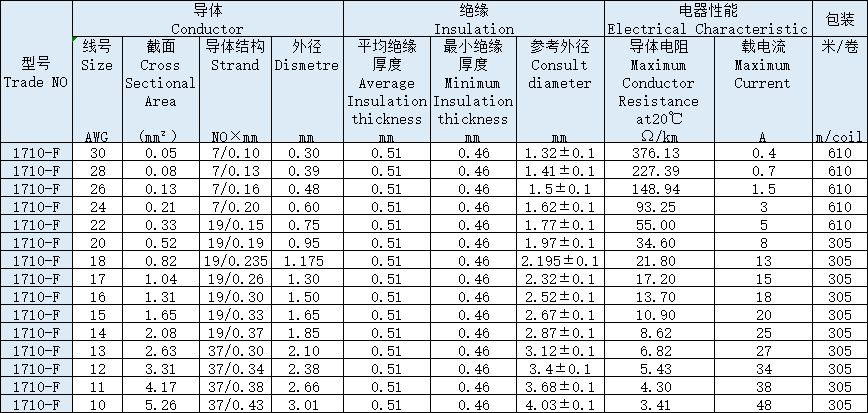

4.Construction data
If customer use single conductor or other conductor ，we can provide technical parameter.
5.TECHNICAL DATA：
Gauge Size： 30AWG-10AWG
Conductor： Copper
Nickel Plated Copper
Tinned Copper
Insulation： PFA
Rated Voltage： 600V
Rated Temperature： -60℃~200℃
Testing Voltage： 2500
Properties of Various Fluoroplastics for Wires and Cables
| Property Items | Polytetrafluoroethylene (F-4) (PTFE) | Soluble Polytetrafluoroethylene (PFA) | Polyfluoroethylene-propylene (F-46) (FEP) | Tetrafluoroethylene-Ethylene Copolymer (F-40) (ETFE) | Polytrifluorochloroethylene (F-30) (ECTFE) | Polyvinylidene Fluoride (F-26) (PVDF) |
|---|---|---|---|---|---|---|
| Density / (g/cm³) | 2.1 ~ 2.2 | 2.12 ~ 2.17 | 2.14 ~ 2.17 | 1.73 ~ 1.75 | 2.10 ~ 2.15 | 1.75 ~ 1.78 |
| Water Absorption (24h) (%) | < 0.01 | 0.01 | < 0.01 | < 0.01 | < 0.01 | 0.03 |
| Oxygen Index (vol. %) | > 95 | > 95 | > 95 | 31 | > 95 | > 43 |
| Hardness | 50 ~ 65 (Shore) | 60 (Shore) | 55 (Shore) | 50 (Rockwell) | 110 ~ 115 (Rockwell) | 110 ~ 115 (Shore) |
| Static Coefficient of Friction | 0.02 | 0.04 | 0.05 | 0.4 | 0.08 | 0.14 ~ 0.17 |
| Tensile Strength / MPa | 15 ~ 30 | 27 ~ 32 | 20 ~ 30 | 42 ~ 51 | 30 ~ 40 | 40 ~ 45 |
| Yield Strength / MPa | 19 ~ 21 | 13 ~ 15 | 13 ~ 15 | 25 ~ 28 | 24 ~ 25 | 29 ~ 31 |
| Compressive Strength (0.1% deformation) / (MPa) | 0.48 ~ 12 | 4.5 ~ 6 | 10 ~ 12 | 9 ~ 15 | 13 ~ 15 | 8.9 ~ 9.6 |
| Elongation at Break (%) | 250 ~ 400 | 300 | 250 ~ 330 | 100 ~ 400 | 125 ~ 175 | 100 ~ 120 |
| Tensile Elastic Modulus / MPa | 490 ~ 630 | – | 420 ~ 560 | – | 1260 | 1190 ~ 1400 |
| Flexural Elastic Modulus / MPa | 0.25 ~ 0.59 | – | No Break | No Break | 0.34 ~ 0.35 | 0.37 |
| Heat Deflection Temp / ℃ (Load 4.0kg/cm²) | 121 | 128 ~ 136 | 70 | 104.4 | 91.1 ~ 143.9 | 148.9 |
| Heat Deflection Temp / ℃ (Load 18.5kg/cm²) | 54 | 60 ~ 82 | 51 | 71 | 66 ~ 81 | 54 ~ 90 |
| Coefficient of Thermal Expansion / (10⁻⁵/℃) | 10 | 12 | 8 ~ 11 | 15 | 5 ~ 7 | 15 |
| Brittleness Temperature / ℃ | < -80 | < -80 | < -80 | < -80 | < -80 | < -80 |
| Maximum Service Temperature / ℃ | 260 | 260 | 210 | 180 | 150 | 150 |
| Short-time Dielectric Strength (MV/m) | 20 | 20 ~ 25 | 20 ~ 25 | 16 | 20 | 10 |
| Volume Resistivity / (Ω·cm) | 1018 | 1018 | 2×1018 | 1016 | 1015 | 5×1015 |
| Arc Resistance / s | 360 | – | > 165 | 72 | 360 | 50 ~ 60 |
| Relative Permittivity (1kHz) | 2.1 | 2.1 | 2.1 | 2.6 | 2.8 | 7.7 ~ 8.0 |
| Relative Permittivity (1MHz) | 2.1 | 2.1 | 2.1 | 2.6 | 2.5 ~ 2.7 | 6.4 |
| Dissipation Factor (1kHz) | 0.0002 | 0.002 | 0.0002 | 0.0008 | 0.01 ~ 0.024 | 0.02 |
| Dissipation Factor (1MHz) | 0.0002 | 0.003 | 0.0007 | 0.005 | 0.01 | 0.17 |
| Radiation Resistance | Poor | Excellent | Poor | Excellent | Fair | Excellent |
